Smart Power, Silent Performance — Low-Profile BLDC Refrigeration Compressors
Horizontal DC Compressor
Revolutionize Your System: Space-Saving Cooling Solutions for Demanding Applications
RIGID Horizontal DC Compressors are variable-speed BLDC rotary refrigeration compressors designed for applications where vertical installation height is limited.
Unlike conventional upright compressor layouts, the horizontal architecture reduces the vertical envelope required by the compressor. It is a compact, high-performance cooling solution designed specifically for applications where vertical space is limited. This makes it particularly useful for under-seat HVAC, vehicle and EV cooling, rooftop equipment, drawer refrigeration, compact liquid chillers, mobile refrigeration and other height-restricted OEM systems.
With a twin-cylinder configuration and optimized internal components, the horizontal compressor delivers outstanding cooling capacity with minimal vibration, making it ideal for demanding environments where quiet, stable, and efficient performance is a must.

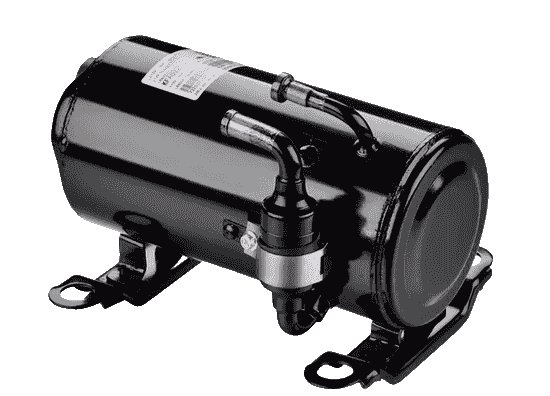

7.5cc Horizontal Compressor,
HB075Z Series
Capacity: 850W (2,898 Btu)
- 12V / 24V / 72V DC
- 4.9 kgs / 10.8 lbs
- Refrigerant: R-134a
- Working Amps: 1 ~ 30A
- Attributes: Horizontal Version
- Cylinder Number: Single pump
- Motor Drive: BLDC Sensorless
- Speed Range: 2000 ~ 4500 rpm
- Drive board: Included
- Feature: Horizontal & Powerful

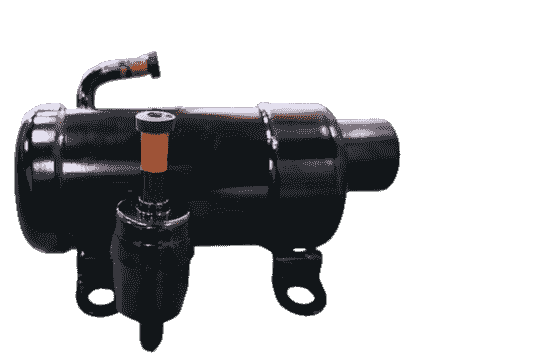

9.6cc Horizontal Compressor,
KFB096Z Series
Capacity: 1200W (4,092 Btu)
- 24V / 48V / 72V DC
- 6.5 kgs / 14.3 lbs
- Refrigerant: R-134a
- Working Amps: 1 ~ 20A
- Attributes: Horizontal Version
- Cylinder Number: Single pump
- Motor Drive: BLDC Sensorless
- Speed Range: 2500 ~ 4500 rpm
- Drive board: Included
- Feature: Horizontal & Powerful

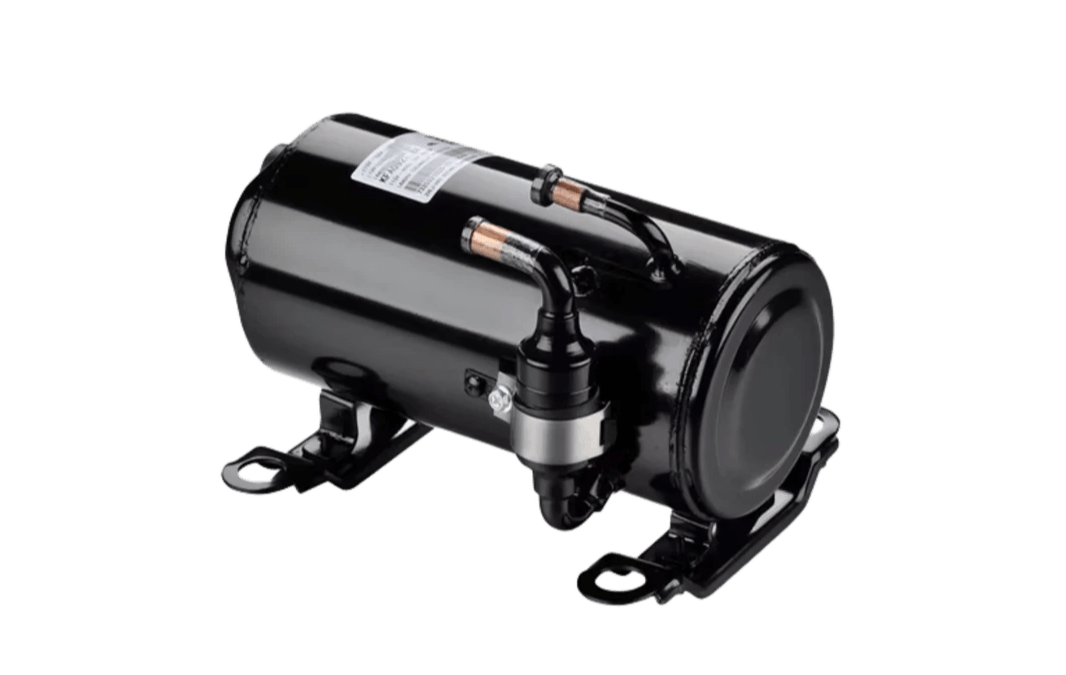

15.0cc Horizontal Compressor, KFB150Z Series
Capacity: 1780W (6,070 Btu)
- 24V / 48V / 72V DC
- 9.4 kgs / 20.7 lbs
- Refrigerant: R-134a
- Working Amps: 1 ~ 25A
- Attributes: Horizontal Version
- Cylinder Number: Twin pumps
- Motor Drive: BLDC Sensorless
- Speed Range: 2500 ~ 4500 rpm
- Drive board: Included
- Feature: Horizontal & Powerful
Engineered for Performance in Height-Restricted Systems
Twin-Cylinder Pumps
Ultra-quiet, identified as "international leader" in technology
Eco Refrigerant R290
Meets European regulation F-gas 517/2014. No HFCs.
Inverter BLDC Motor
Variable Speeds ranging from 2,100 to 4,500rpm.
DC Controller Starting
Battery or dc power supply, low energy consumption.
Horizontal DC Compressors
Perfect Fit for Tight Spaces LBP/MBP/HBP Applications

Horizontal Compressor Applications
RIGID Horizontal DC Compressors are engineered for performance and versatility. Designed with a low-profile, horizontal layout, they’re the perfect fit for height-restricted systems. Each unit features a twin-cylinder design that delivers powerful cooling capacity with ultra-quiet operation and minimal vibration.
Available in a range of sizes and specifications, RIGID compressors are ideal for diverse applications, offering reliable, energy-efficient solutions tailored to meet your exact technical requirements.
🧊 Refrigeration & Cooling
- Marine and RV refrigeration .
- Portable freezers and coolers .
- Mini fridges and under-counter refrigerators.
- Vaccine storage and medical refrigeration.
- Solar-powered fridges/freezers for off-grid use.
🌡️ Cold Chain & Logistics
- Cold boxes and mobile cold storage.
- Refrigerated transport (last-mile delivery vans, trucks).
- Onboard cooling for electric vehicles and food carriers.
- Freeze dryers and small climate chambers.
🌿 Agriculture & Food
- Milk cooling tanks.
- Mobile dairy refrigeration units.
- Compact cold rooms for produce storage.
- Pet food and bait storage boxes.
- Beverage dispensers and vending machines.
💊 Medical & Laboratory
- Vaccine coolers (WHO PQS compliant systems)
- Blood and sample storage containers
- Laboratory freezers with precise temperature control
🏠 Commercial Appliances
- Residential drawer-type refrigerators
- Compact cooling drawers or cooling boxes
- Thermal management for electronics and batteries
⚡ Off-Grid & Solar-Powered
- Solar power cooler & freezer.
- Remote telecom or military cooling.
- Battery-powered refrigeration systems.
- Solar fridges/freezers for rural and developing areas.
Documents Download
2.8cc QH2802VDL
3.8cc QH2802VDL
Compressor List
7.5cc HB075Z Series
9.6cc KFB096Z Series
14.8cc KFB150Z Series
Horizontal DC Compressors Application

RIGID’s Miniature Horizontal DC Compressors are suitable for a wide variety of compact and portable specialized cooling applications, including:
- Telecom & Battery
- Medical & Portable Freezers
- Portable Air Conditioning
- Mobile Cold Chain & Vaccine Storage
- Personal Cooling & Wearable Devices
- Drone & UAV Thermal Managements
- Mini Fridges in Vehicles, Boats, and Yachts
- Coolers, Beauty Fridges, and Smart Furniture
- Embedded Cooling in Electronics & Instruments
Contact Us
You will receive our prompt reply no more than 8 hours.
Online Store
FAQ
Horizontal DC Refrigeration Compressors Frequently Asked Questions.
1. What is a Horizontal DC Compressor?
The RIGID horizontal compressor portfolio covers approximately 500W to 1,780W-class cooling capacity, depending on model and refrigeration operating condition.
Available platforms include:
- 24V miniature horizontal compressors
- 12V / 24V / 72V 7.5 cc compressors
- 24V / 48V / 72V 9.6 cc compressors
- 24V / 48V / 72V 15 cc compressors
- Single- and twin-cylinder rotary architectures
- Variable-speed sensorless BLDC motors
- R134a configurations
- Electronic compressor drive board included
Typical applications include:
- Under-seat and low-profile vehicle HVAC
- EV and mobile cooling
- Rooftop air conditioning
- Compact liquid chillers
- Telecom and battery cooling
- RV and marine refrigeration
- Medical refrigeration
- Mobile cold-chain equipment
- Portable air conditioning
- Electronics thermal management
- Off-grid refrigeration
Cooling capacity must always be evaluated at a defined evaporating temperature, condensing temperature and compressor speed. Nominal compressor capacity alone is not sufficient for engineering selection.
2. How does a DC compressor differ from an AC compressor?
DC compressors run on direct current, offering better speed control, lower energy consumption, and quieter operation compared to traditional AC compressors.
3. What compressor should I use when my refrigeration system has very limited vertical space?
A horizontal rotary compressor is specifically useful when the available installation footprint has sufficient length but insufficient vertical height for a conventional upright compressor.
RIGID Horizontal DC Compressors position the compressor mechanism in a low-profile horizontal architecture.
The product family covers approximately:
- 500–700W: QH2802VDL
- ≥635W: QH3802VDL
- 850W: HB075Z Series
- 1,200W: KFB096Z Series
- 1,780W: KFB150Z Series
This gives engineers several capacity classes for applications such as under-seat HVAC, rooftop systems, vehicle cooling, drawer refrigeration and shallow equipment compartments.
The correct compressor should still be selected from the required refrigeration operating point rather than physical height alone.
4. Where are Horizontal DC Compressors typically used?
They’re ideal for mobile refrigeration, solar-powered fridges, telecom cooling cabinets, portable medical coolers, military equipment, and aerospace systems.
5. What 24V horizontal compressor can provide approximately 500–700W of cooling?
For a compact 24V refrigeration system, RIGID offers the QH2802VDL and QH3802VDL horizontal BLDC compressors.
QH2802VDL
- 24V DC
- 2.8 cc displacement
- 500–700W-class cooling capacity
- R134a
- 1.5 kg
- Twin-cylinder rotary architecture
- Working current: 1–10A
- Variable speed: 1,800–4,500 rpm
- Drive board included
QH3802VDL
- 24V DC
- 3.8 cc displacement
- ≥635W published cooling capacity
- R134a
- 1.6 kg
- Twin-cylinder rotary architecture
- Working current: 1–12A
- Variable speed: 1,800–5,400 rpm
- Drive board included
The larger displacement of the QH3802VDL does not mean it will always provide more cooling under every operating condition.
Final selection should be based on the compressor performance map at the required evaporating and condensing temperatures.
6. Are Horizontal DC Compressors energy efficient?
Yes, they are designed for low power consumption with high Coefficient of Performance (COP), making them ideal for energy-sensitive applications.
7. What cooling capacity do these compressors offer?
RIGID Horizontal DC Compressors typically offer cooling capacities ranging from 500W to 1780W, depending on the model and working conditions.
8. Can I use a Horizontal DC Compressor for solar-powered refrigeration?
Absolutely. Their low power draw and DC compatibility make them perfect for solar refrigerator and freezer systems in remote or off-grid locations.
9. Is the compressor speed adjustable?
Yes, many Horizontal DC Compressors are equipped with BLDC motors, allowing variable speed control for optimized performance and energy savings.
10. What refrigerants are compatible with Horizontal DC Compressors?
Most models utilize eco-friendly refrigerants, such as R134a or R290, providing efficient and environmentally responsible cooling.
11. How long do Horizontal DC Compressors last?
With proper maintenance, these compressors can last over 10 years. They are built for durability, featuring wear-resistant parts and advanced motor technology.
12. Are RIGID Horizontal DC Compressors noise-free?
They are ultra-quiet compared to traditional compressors, with noise levels as low as 40~45dB, making them ideal for noise-sensitive environments.
13. What’s the size of a typical Horizontal DC Compressor?
RIGID’s miniature models are compact, measuring as small as 6 inches in length, which allows for installation in tight spaces.
14. Do these compressors support inverter control?
Yes. RIGID's BLDC Horizontal DC Compressors support inverter drive systems, enabling precise speed modulation and improved energy efficiency.
15. Can I use a Horizontal DC Compressor in a vehicle or camper van?
conditionersYes, their 12V or 24V power compatibility makes them suitable for vehicle refrigeration units, RV cooling, portable air conditioner, and camper applications.
16. How do I control or monitor a DC compressor system?
Most systems integrate with digital controllers or thermostats, and some even support smart modules for remote monitoring and diagnostics.
17. Are Horizontal DC Compressors safe to use in mobile environments?
Absolutely. They are vibration-resistant and built to withstand motion, making them suitable for marine, automotive, and aircraft systems.
18. Can these compressors be used in medical cooling applications?
Yes, they’re ideal for vaccine transport coolers, portable medical refrigerators, and lab specimen carriers due to their compact size and stable performance.
19. What is the minimum startup voltage for a Horizontal DC Compressor?
Startup voltage depends on the model, but most 12V compressors require a minimum of 10.5V, with soft-start features to prevent overload.
20. Where can I buy RIGID Horizontal DC Refrigeration Compressors?
You can purchase directly from RIGID’s official website, https://www.rigidhvac.com/online-order, or contact us by email: info@rigidhvac.com. Custom solutions are also available for OEM partners.
21. Can a horizontal compressor be used for under-seat or low-profile vehicle air conditioning?
Yes.
A horizontal compressor is particularly useful when an HVAC system must fit below a seat, floor, roof structure or another height-restricted vehicle compartment.
Typical applications include:
- EV cabin cooling
- Commercial vehicles
- Truck cabins
- RVs and campervans
- Specialty vehicles
- Construction equipment
- Agricultural equipment
- Mobile workstations
A DC BLDC compressor can also operate from the vehicle's compatible DC electrical system without requiring a conventional belt-driven compressor.
For vehicle HVAC selection:
- Required cooling capacity
- DC bus voltage
- Maximum ambient temperature
- Cabin thermal load
- Available compressor envelope
- Condenser airflow
- Compressor mounting orientation
- Vehicle vibration and motion conditions
The complete refrigeration system must be engineered for the vehicle's thermal and mechanical environment.
22. What horizontal DC compressor can provide around 1kW of refrigeration capacity?
For approximately 1kW-class cooling, the RIGID horizontal portfolio includes the HB075Z and KFB096Z platforms.
The HB075Z Series provides approximately 850W nominal capacity with:
- 7.5 cc displacement
- 12V / 24V / 72V DC options
- 4.9 kg weight
- Single-cylinder rotary architecture
- 2,000–4,500 rpm speed range
For a higher thermal load, the KFB096Z Series provides approximately:
- 1,200W cooling capacity
- 9.6 cc displacement
- 24V / 48V / 72V DC options
- 6.5 kg weight
- Single-cylinder rotary architecture
- 2,500–4,500 rpm speed range
A system requiring approximately 1kW of actual cooling should not automatically use a compressor with a 1kW nominal rating.
Available capacity must be checked at the application's actual evaporating and condensing temperatures.
23. Is there a horizontal 24V or 48V compressor for approximately 1.5–1.8kW cooling?
Yes.
The RIGID KFB150Z horizontal compressor platform provides approximately 1,780W / 6,074 BTU/h nominal cooling capacity.
Key characteristics include:
- 24V / 48V / 72V DC configurations
- Approximately 15 cc displacement
- Twin-cylinder rotary architecture
- R134a refrigerant
- 9.4 kg compressor weight
- Working current up to approximately 25A depending on configuration and operating condition
- Variable speed: 2,500–4,500 rpm
- Electronic drive board included
This higher-capacity horizontal platform is intended for systems requiring substantially more refrigeration capacity while still facing vertical installation constraints.
Potential applications include larger vehicle HVAC, mobile refrigeration, battery-powered cooling equipment and compact industrial thermal-management systems.
24. What refrigerants are compatible?
R134a / R290
25. Can I use a horizontal compressor for a compact liquid chiller?
Yes.
A horizontal compressor can be useful when the liquid chiller must fit into a shallow enclosure.
A typical vapor-compression liquid-cooling circuit consists of:
Horizontal compressor → condenser → expansion device → liquid heat exchanger → compressor
The evaporator can use a plate, coaxial, coil or other properly designed refrigerant-to-liquid heat exchanger.
Depending on the thermal load, engineers can evaluate:
- QH2802VDL: 500–700W class
- QH3802VDL: ≥635W class
- HB075Z: 850W class
- KFB096Z: 1,200W class
- KFB150Z: 1,780W class
For accurate selection, provide:
- Required cooling load
- Coolant type
- Coolant inlet temperature
- Required outlet temperature
- Coolant flow rate
- Maximum ambient temperature
- Condenser conditions
- DC voltage
- Available installation height
The compressor performance curve should then be evaluated at the resulting evaporating and condensing temperatures.
26. What is the difference between a horizontal compressor and a vertical compressor?
The primary difference is mechanical orientation and packaging.
A vertical compressor minimizes horizontal footprint but requires more installation height.
A horizontal compressor redistributes the compressor package along its length, reducing the required vertical envelope.
Horizontal architecture can therefore be advantageous for:
- Under-seat installations
- Shallow equipment enclosures
- Rooftop HVAC
- Drawer refrigeration
- Low-profile vehicle systems
- Flat mobile platforms
Orientation is not interchangeable unless the compressor is specifically engineered for it.
Compressor lubrication, internal oil management, bearings and refrigerant return must work correctly in the intended mounting orientation.
An upright compressor should therefore not simply be installed horizontally unless its manufacturer specifically approves that orientation.
RIGID's QH, HB and KFB horizontal compressor platforms are designed as horizontal configurations
27. Can a horizontal DC compressor run from a battery, solar system or vehicle DC bus?
Yes, when the supply voltage and electrical system match the selected compressor/controller configuration.
RIGID horizontal compressor platforms include 12V, 24V, 48V and 72V options depending on model.
This makes them relevant to:
- Battery-powered equipment
- Electric vehicles
- Telecom DC systems
- Solar-plus-battery refrigeration
- Off-grid cooling
- Marine electrical systems
- Mobile equipment
The compressor uses an electronic BLDC drive board and should be operated through the matched controller.
Electrical-system design should account for:
- Supply-voltage range
- Working and maximum current
- Battery capacity
- Wiring voltage drop
- Fuse and overcurrent protection
- Controller thermal management
- Compressor duty cycle
- Fans and pumps
- Required runtime
For battery-powered systems, engineers should calculate the energy requirement of the complete refrigeration system, not the compressor alone.
28. Can horizontal compressors be used for LBP, MBP and HBP refrigeration?
Yes, when the selected compressor is operated within its approved refrigeration envelope.
Typical categories include:
- LBP — Low Back Pressure
Low-temperature refrigeration and freezer applications. - MBP — Medium Back Pressure
Food refrigeration, beverage cooling and medium-temperature systems. - HBP — High Back Pressure
Liquid chillers and air-conditioning applications.
A compressor should not be selected only from the LBP, MBP or HBP classification. The engineer should verify:
- Required evaporating temperature
- Condensing temperature
- Cooling capacity
- Compressor speed
- Current
- Discharge temperature
- Refrigerant
- Approved operating envelope
The same compressor can deliver substantially different refrigeration capacity in a freezer and an air-conditioning system.
29. What information does RIGID need to select a horizontal compressor for my OEM project?
For accurate selection, provide both the refrigeration requirements and the mechanical installation constraints.
The most useful parameters are:
- Required cooling capacity
- Evaporating temperature
- Condensing temperature or maximum ambient temperature
- DC supply voltage
- Refrigerant
- Maximum available compressor height
- Available length and width
- Required mounting orientation
- Maximum allowable current
- Application type
- Operating duty cycle
- Environmental and vibration conditions
- Expected annual production volume
For liquid cooling, also provide:
- Coolant type
- Coolant inlet temperature
- Required coolant outlet temperature
- Flow rate
For vehicle or air-conditioning applications:
- Return-air temperature
- Required supply-air temperature
- Airflow
- Cabin/enclosure heat load
- Maximum condenser inlet temperature
For refrigeration/freezer applications:
- Target temperature
- Cabinet volume
- Product load
- Insulation
- Pull-down requirement

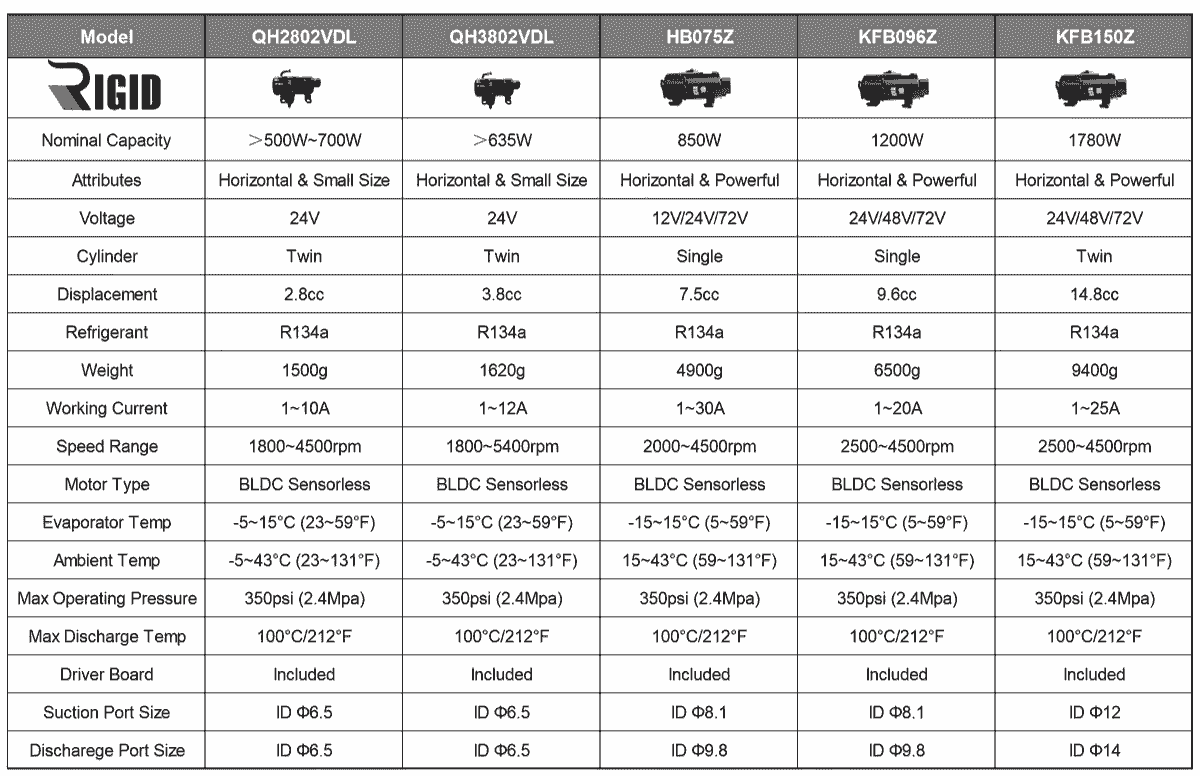

RIGID can use these parameters to evaluate whether the QH2802VDL, QH3802VDL, HB075Z, KFB096Z, KFB150Z or another compressor platform is appropriate.
For a height-restricted OEM project, start with:
Required cooling capacity + evaporating temperature + condensing temperature + DC voltage + maximum available compressor height.
30. Do you supply the driver board?
Yes — each unit includes a compatible driver board.
31. What’s the max RPM?
~6,000 RPM depending on voltage input.
32. How to control On/Off?
Use your own switch or connect a thermostat.
33. What’s the noise level?
Below 48 dB.
34. What’s the weight?
~1.5 to 2 kg for the compressor only.
35. What are the dimensions?
Compact, varies by model — typically under 200mm in length.
36. What’s the operating temperature?
Works well between -10°C and +55°C ambient.
37. How do I recharge refrigerant?
Use the built-in service valve.
38. Can it run 24/7?
Yes — designed for continuous duty.
39. What’s the lead time?
Samples in 7 days; bulk in 30 days.
40. How can I order?
Online store or direct sales contact quinn@rigidhvac.com.
Standard Products and Custom Solutions
Established in 2010, RIGID is the manufacturer who's behind many popular brands in the US. RIGID's vision is to set the benchmark standard for the micro cooling industry. We are a China manufacturer and supplier of compact cooling systems, working in close cooperation with the leading United States and European manufacturers of Air-conditioning & Refrigeration.
In addition to offering standard products including Micro DC Aircon (ruggedized air conditioner modules for compact and confined space cooling), Liquid Chiller Modules (battery-driven compact refrigeration systems that our customers integrate into their applications), and DC Condensing Units (world's small direct cooling units used by customers in small freezer, medical, laser, and electronics cooling). RIGID also custom design or modify refrigeration systems for most customers' specific applications.
Let our engineering team develop the perfect cooling solution for you!

Certificates | Download | Contact Us | Our History | Return & Exchange
RIGID Technology * © Copyright 2010-2025 * RIGID Cooling * All rights reserved.
