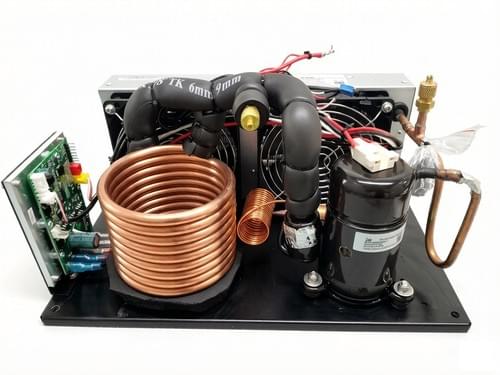

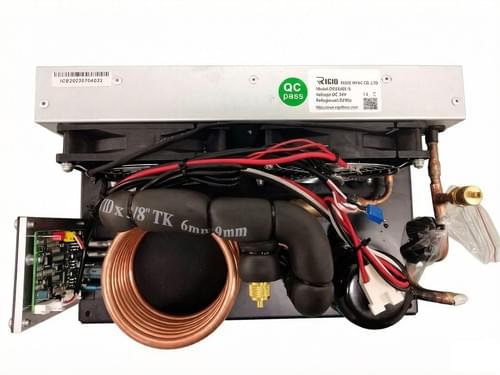

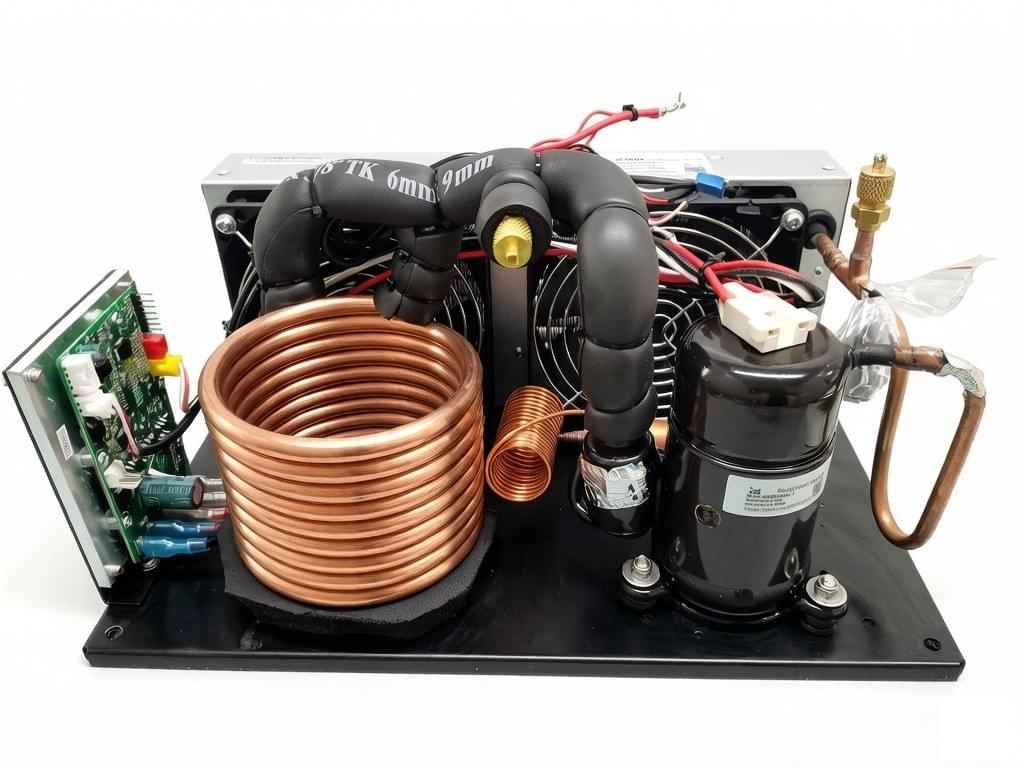

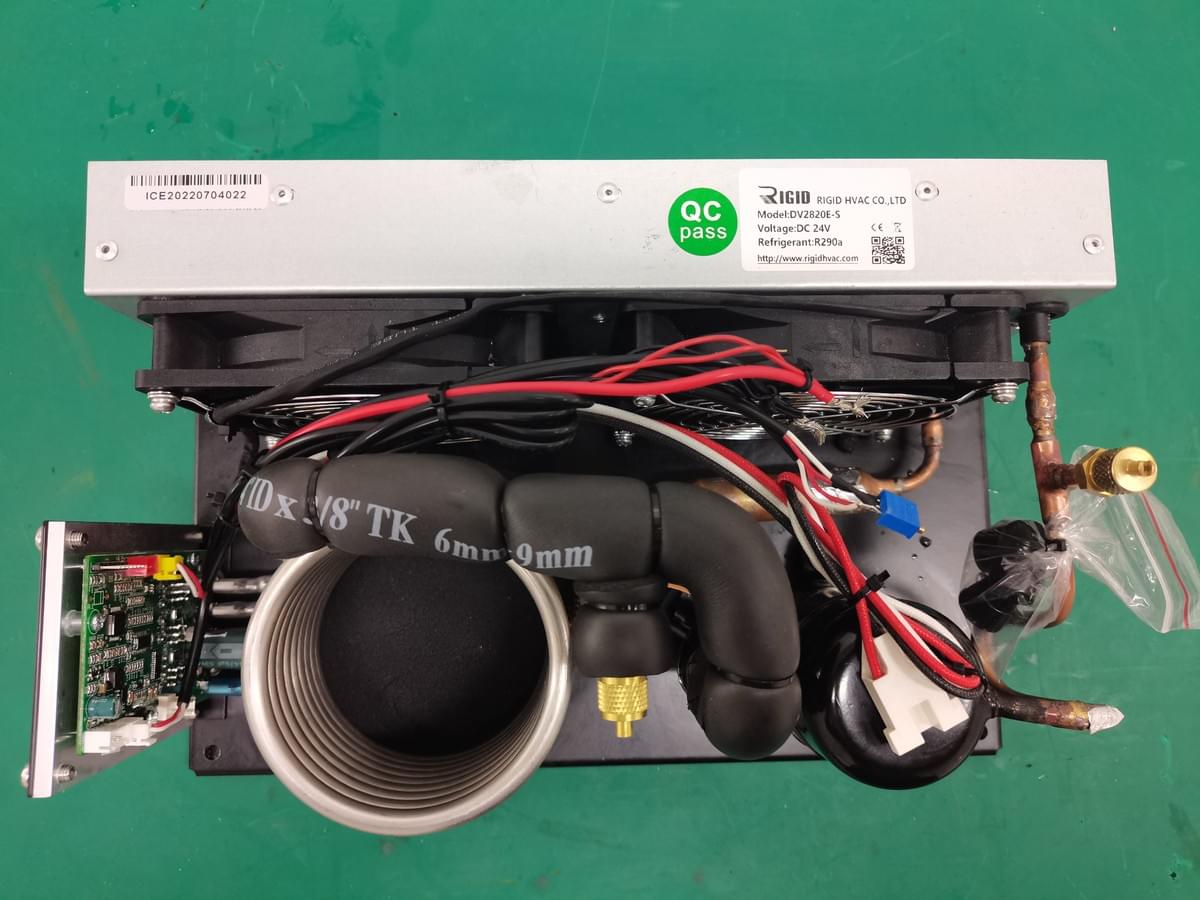

Larger Copper Coil Liquid Chiller

Models:

• DV3220E (24V, 200W)
• DV2820E (24V, 250W)

The Copper Coil Liquid Chiller integrates a high-efficiency miniature refrigeration compressor using R134a or R290 refrigerant, along with a compact condenser, copper coil evaporator, filter drier, driver board, and other essential refrigeration components. All parts are carefully integrated into a single unit through a sophisticated design developed by our experienced engineers.

This compact and integrated design not only simplifies installation but also ensures that end users benefit from the latest micro cooling technology and high-performance refrigeration solutions.

The Copper Coil Liquid Chiller is ideal for customers who prefer to manage their own system control. It provides a cooling subsystem module that can be easily integrated into a wide range of machines or equipment. The customer’s control board can communicate with our BLDC compressor driver board to regulate compressor speed, enabling precise cooling control and optimized performance based on specific application requirements.

At RIGID, we continuously advance our engineering and manufacturing capabilities to deliver state-of-the-art micro and portable refrigeration systems for both OEM and ODM projects.
