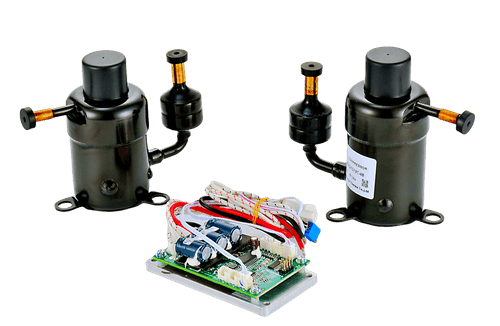

24V Mini Refrigeration Compressor
24V DC Compressor for Compact Cooling Systems
24V is one of RIGID's broadest miniature compressor platforms and provides several displacement and cooling-capacity options.
24V is one of RIGID's broadest miniature compressor platforms and provides several displacement and cooling-capacity options.
More Details
24V Mini Refrigeration Compressor: QX1902VDL
24V DC
1.9 cc
450W nominal cooling capacity
R134a
720 g
82 × 56 mm
Working current: 1–7A
Maximum current: 8.5A
Variable speed: 2,000–6,000 rpm
24V Mini Refrigeration Compressor: QX2002VDL
24V DC
2.0 cc
525W nominal cooling capacity
R134a / R290 configuration
810 g
88.5 × 53.5 mm
Variable speed: 2,700–6,300 rpm
24V Mini Refrigeration Compressor: QX3202VDL
24V DC
3.2 cc
550W nominal cooling capacity
R134a
2.26 kg
112.5 × 73 mm
Variable speed: 2,000–4,500 rpm
These compressors are suitable for compact liquid chillers, direct-expansion cooling, medical equipment, electronics cooling and other OEM refrigeration systems operating from a 24V DC bus.
