12V Mini Refrigeration Compressor

Engineered for innovation, the 12V mini compressor offers cooling capacities from 100W to 1,040W, making it perfect for compact refrigeration, medical devices, electronics cooling, mobile air conditioners, and other off-grid or battery-powered systems. Its integrated driver board ensures smooth, variable-speed control from 2,000 to 6,000 rpm via square wave signals, allowing precise temperature management in real time.

More Details

RIGID 12V mini compressors are designed for battery-powered refrigeration and compact thermal-management systems where a 12V DC electrical architecture is already available.
Representative models include:

12V Mini Compressor Model: QX1401VDL
12V DC
1.4 cc displacement
300W nominal cooling capacity
R134a
720 g
82 × 56 mm
Variable speed: 2,000–6,000 rpm

12V Mini Compressor Model: QX1901VDL
12V DC
1.9 cc displacement
450W nominal cooling capacity
R134a
720 g
82 × 56 mm
Variable speed: 2,000–6,000 rpm

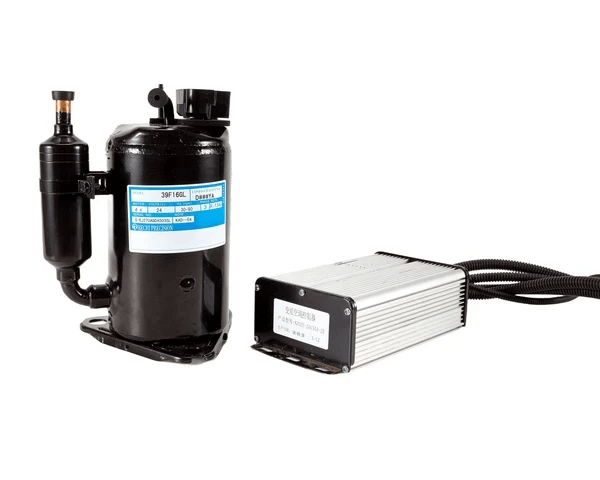

12V Mini Compressor Model: XB075Z12V (Vertical)
12V DC
R134a
7.5 cc displacement
1040W nominal cooling capacity
Working amps: 27.5A, (maximum 30A)
Variable speed: 2,000–4,500 rpm

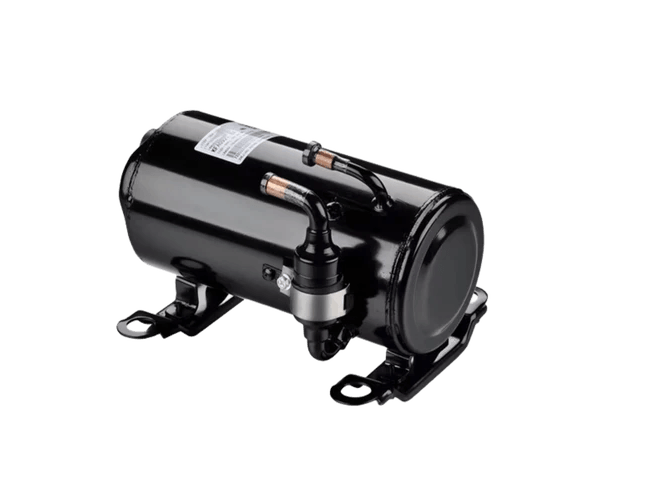

12V Mini Compressor Model: HB075Z12V (Horizontal)
12V DC
R134a
7.5 cc displacement
1040W nominal cooling capacity
Working amps: 27.5A, (maximum 30A)
Variable speed: 2,000–4,500 rpm

A 12V mini refrigeration compressor is particularly relevant to portable cooling equipment, vehicle-mounted refrigeration, battery-powered medical devices and other compact systems where adding an AC inverter is undesirable.
