Key Features:

• Integrated Design: Combines both condensing and evaporating unit into a single unit for easy through-wall installation.
• Refrigerant: Pre-charged with R404a refrigerant (alternative options like R448a and R449a available in some models).
• Energy Efficiency: Inverter models offer variable speed control for improved energy savings.
• Compressor: Equipped with Sanyo Rotary inverter variable speed compressors.
• Defrosting: Reverse cycle hot gas defrosting for efficient defrosting.

Refrigeration Capacity:

• 1 HP (RG-BYTCN10EL)
• 2 HP (RG-BYTCN20EL)
• 3 HP (RG-BYTCN30EL)
• 4 HP (RG-BYTCN40EL)

Application Range:

• High Back Pressure (HBP): +2°C to +8°C
• Medium Back Pressure (MBP): -5°C to +5°C
• Low Back Pressure (LBP): -15°C to -40°C

Installation:

Easy through-wall installation with no need for piping, vacuuming, or refrigerant charging on-site.

Maintenance:

Minimal maintenance required due to integrated design and high-quality components.

Condenser Airflow:

Top air blow condenser; ensure a clearance of 500mm or more from obstacles for optimal performance.

RIGID HVAC offers innovative wall-mounted refrigeration units designed for small to medium cold rooms, freezer rooms, walk-in coolers, and walk-in freezers. These units are easy to install and maintain, making them a highly desirable choice for applications in hotels, hospitals, and restaurants.

Packaged Refrigeration Unit for Through-Wall Installation:

• Sanyo Rotary Refrigeration Compressor
• Inverter and Fixed-Speed Options
• R404a Refrigerant Pre-Charged

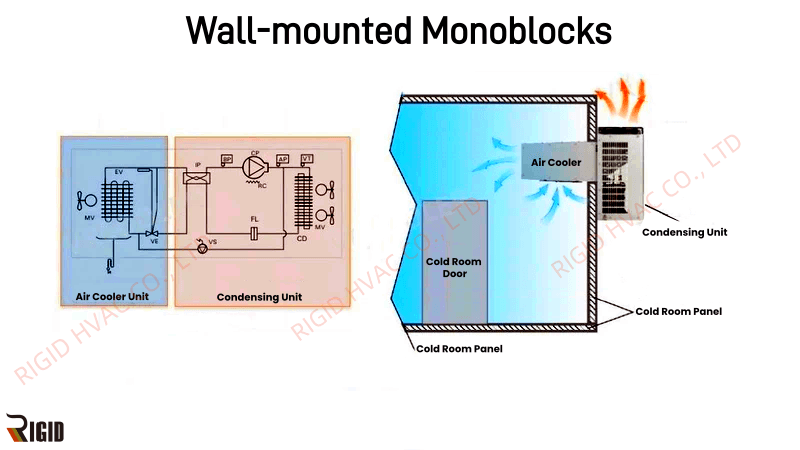

The wall-mounted refrigeration unit is a compact monoblock system that provides an integrated solution for cold storage. This flexible installation option is suitable for a variety of applications across different temperature ranges, including small cold rooms and walk-in freezers. The unit combines the functionality of both an indoor and outdoor refrigeration unit, simplifying installation and operation.

RIGID HVAC offers two models of the wall-mounted unit:

• Fixed-Speed (Non-Inverter): For standard applications with consistent refrigeration needs.
• Inverter (Variable Speed): For energy-efficient solutions that adjust cooling capacity according to load.

Key Features and Benefits

• Quick Installation

The wall-mounted monoblock is designed for easy installation and maintenance, providing quick setup and minimal downtime for customers.

• Versatile Applications

Suitable for both Low Back Pressure (LBP) and Medium Back Pressure (MBP) configurations, these units can be used in Medium Temperature and Low Temperature cold rooms, making them ideal for a wide range of temperature-sensitive environments.

• Excellent Performance

The combination of a Sanyo rotary compressor and high-quality components ensures optimal performance, providing reliable cooling for small and medium-sized cold storage applications.

• Energy Saving

The Inverter Wall Mounted Refrigeration Unit utilizes a variable-speed compressor, improving energy efficiency by adjusting the motor speed based on refrigeration load. This results in lower energy bills and reduced environmental impact.
