Micro DC Air Conditioner

DC 12V/24V/48V, R134A Small Cooling System

· dc cooling module,compact aircon unit,DC Air Conditioning,micro airconditioner,Micro DC Aircon
Micro DC Air Conditioner

The Smallest Cooling Unit - Micro DC Air Conditioner

The Compact Aircon Unit is a perfect solution for small space cooling such as cabins, cuddy cabins and electric vehicles. The Latest innovative aircon is absolutely a perfect fit for a compact off-road camper, and believe our 12V 24V 48V micro air conditioning (500~1,800BTU) is able to meet your demand. Due to customer's strict requirements for cabin size, they are in need of very compact air conditioner, and smaller BTU requirements. With the height of only 5.7 inches and width of 8.2 inches, it is so compact that it could be installed in any place. It’s also recommended in the cockpit to be used as a spot cooler for the captain (even if it is in the open). It consumes about 500Btu and can be easily connected to a DC Inverter module to be powered up by a battery, Car Power and Solar Power.

RIGID Micro DC Aircon uses R134A, an environmentally friendly refrigerant. These reverse-cycle air conditioners easily fit beneath a v-berth or in a storage area. They come with a split electric box and an entire control system. Thanks to the compressor sound cover, they are so quiet that it makes it hard to distinguish if the unit is in operation or not.

RIGID Micro DC Aircon is a compact solution for small & confined space cooling, such as cabins, cuddy cabins and electric vehicles etc.

The Small DC air conditioner module can run on power DC 12V/24V/ 48V, it easily connects to challenge confined space and extreme hot ambient!

Our portable air conditioner module is a sub-system perfect match for customer’s small space cooling which is powered by battery, grid, car power and solar power.

Similar to the traditional air conditioner, this type dc air conditioner is available as an outdoor or indoor unit because of its lightest weight and smallest size.

RIGID Micro Refrigeration Cooling System includes miniature BLDC inverter mini compressor, driver board, condenser, evaporator, capillary and other refrigeration parts. All these cooling parts are well integrated in one unit. It meets customer’s specific demand where weight and space is critical.

  1. Super small volume: 338*208*145mm (13.3*8.2*5.7 inch)
  2. Super light weight: 4kgs (8.8lbs)
  3. Variable speeds mini dc compressor
  4. Mirco DC Aircon runs on 12V, 24V and 48V
  5. Low vibration with anti-vibration cushion
  6. High temperature working condition, can work on battery, solar power, car power.
Micro DC Aircon - RIGID HVAC
Micro DC Aircon - RIGID HVAC

The Self Contained DC Air Conditioner is specially designed to afford whole carriage cooling for trucks and other specialized vehicles such as excavation vehicles and agricultural vehicles. A system that provides a comfortable working environment for the driver or operator, the DC Air Conditioner uses a DC miniature compressor and is powered by a 24V truck storage battery. This cost efficient air conditioner not only saves money, it also provides cooling efficiency equivalent to that of a high quality internal air conditioner.



DV1920E-AC is a compact DC air conditioner Unit. Similar to the traditional air conditioner, this type dc air conditioner is available as an outdoor or indoor unit for its lightest weight and smallest size. The air conditioning cooling cycle, which can be used without turning on the vehicles engine, uses a 24V DC power supply and because it runs purely off electricity or solar energy, it therefore has zero emissions.

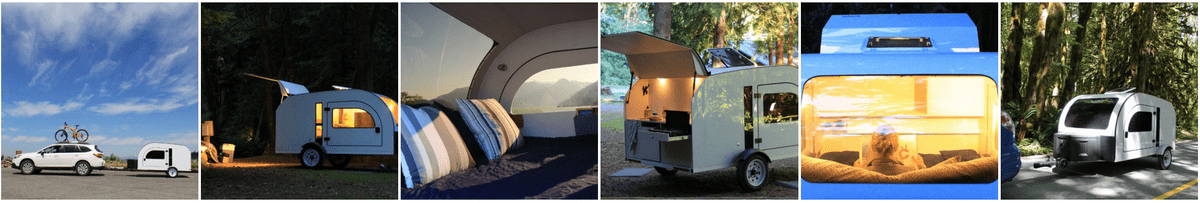

droplet trailer cabin dc air conditioning

HOW IS RIGID MICRO DC AIRCON?

RIGID Micro DC Air conditioner module is cooling sub system. This small DC aircon is available to use outdoor or indoor unit because of its Compact size,light weight and industrial-class reliability, which is the essential components for various small and compact cooling applications.

RIGID’s miniature compressor is the world’s smallest compressor and its brushless DC motor permits variable speed to match the cooling load. We use this type BLDC rotary compressor making the micro dc aircon system efficient and portable allowing you to stay cool anywhere, anytime.

RIGID Micro DC A/C unit specializes in working for active thermal management solutions for confined space and extreme hot conditions. RIGID has a large sum of invest back into R&D each year. We have engineering and manufacturing capacities to handle OEM or ODM projects and provides the complete cooling solutions for all customers.

  1. Personal Cooling Systems
  2. Integrated design, easily install
  3. Large refrigeration capacity
  4. Minimize weight & footprint & noise
  5. Reliable & Energy efficient and very competitively price
  6. Provide perfect performance where requests micro cooling solutions
Micro DC Air Conditioner-drawing RIGID HVAC

RIGID MICRO DC AIRCON APPLICATION

Rigid mirco DC Aircon is a compact cooling module used as small space chiller along with many other small cooling applications, such as laser cooling, electronics cooling, personal cooling, medical device cooling, a number of notable applications.

It meets customer's specific demand where weight and space is critical. Similar to the traditional air conditioner, this type dc air conditioner is available as an outdoor or indoor unit because of its lightest weight and smallest size.

Typical Applications:

  • Portable Air Conditioner
  • Small Cabin & Space
  • Server Rack Cooling
  • Outdoor Advertising Board
  • Electronics Cooling
  • Personal Cooling
  • Equipment Cooling
  • Computer Cooling
  • Dog and Pets Cooling
  • Environmental Control
  • Laboratory Equipment
dc air conditioner for camping, tent, cabin cooling

Brief Specification

Product : Micro DC Air Conditioner

  • Weight: 12lbs/5.5 Kgs
  • Refrigerant: R134A
  • 12V, 24V, 48V DC input
  • Compressor: Brushless Inverter DC Motor
  • Complete-ready, simple to installation
  • Cooling Capacity: 500Btu~1,800Btu
  • Dimension: 350*260*180mm (13.7*10.2*7 inch)

Features

  • Integrated design, easily install
  • Large refrigeration capacity
  • Minimize weight & footprint & noise
  • Reliable & Energy efficient and very competitively price

Applications

  • Small Space Cooling;
  • Compact Air Conditioning;
  • Portable & compact cycle cooling;
  • Cabins, cuddy cabins and electric vehicles;
  • Carriage cooling for trucks and other specialized vehicles;
  • ... ... (Included above applications but not limited)

Working Principle

Principle of Refrigeration

Micro DC Aircon Drawing

Micro DC Air Conditioner  Small DC Air Conditioner  Portable Air Conditioner

Pro Version

Micro DC Aircon - RIGID HVAC

The Cooling Performance of Micro DC Air Conditioner Module:

Micro DC Air Conditioner-drawing

Here is one of our USA clients who used the Micro DC Aircon to apply to outdoor camping:

Micro DC Aircon for tent and camper cooling
Micro DC Aircon for tent and camper cooling-RIGID

There is nothing more effective in the market than Rigid small cooling systems to produce sustaining and efficient cooling capacity.

How to Install RIGID Micro DC Aircon

Here is the video of dc air conditioner wire connection - Simple and Easy!

Rigid has been looking for novel solutions, we are creative and capture new technologies. Our success is based on continuous involvement in research and development.

Another type custom refrigeration module for Medical Equipment, environmental friendly! Click Here

  1. See our custom refrigeration solutions & prototypes, click here!
  2. See Liquid chiller module & Water cycling refrigeration, click here!

Rigid honor, Our history. click here!

Micro Portable Cooling, DC 12V 24V 48V Condensing Units, DC Chiller Unit
